DJI Power 1000
Power your World

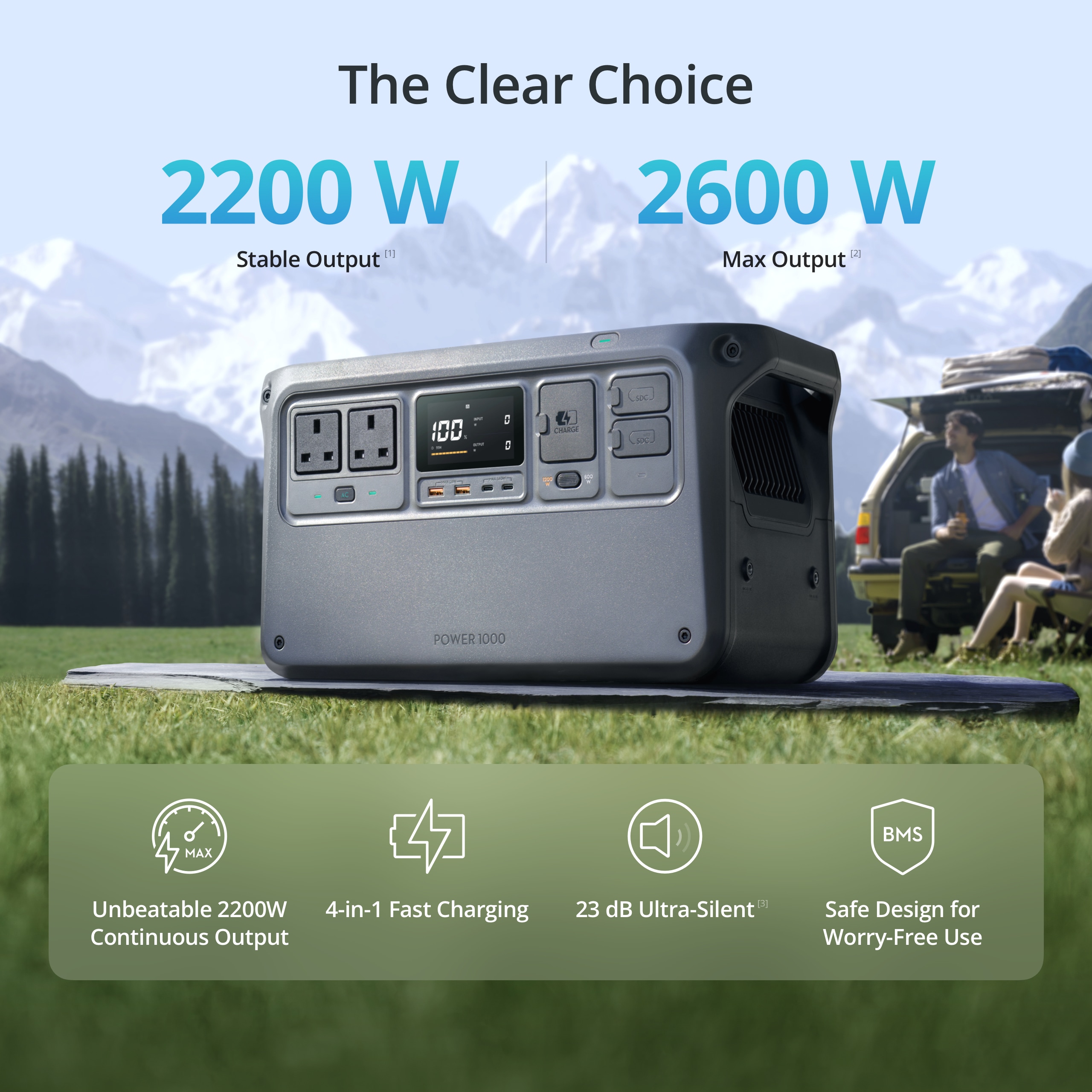

DJI Power 1000 has a battery capacity of 1024Wh and can provide a stable output at 2200 W until battery runs out. It has a max output power of 2600 W and a peak output of 4400 W.

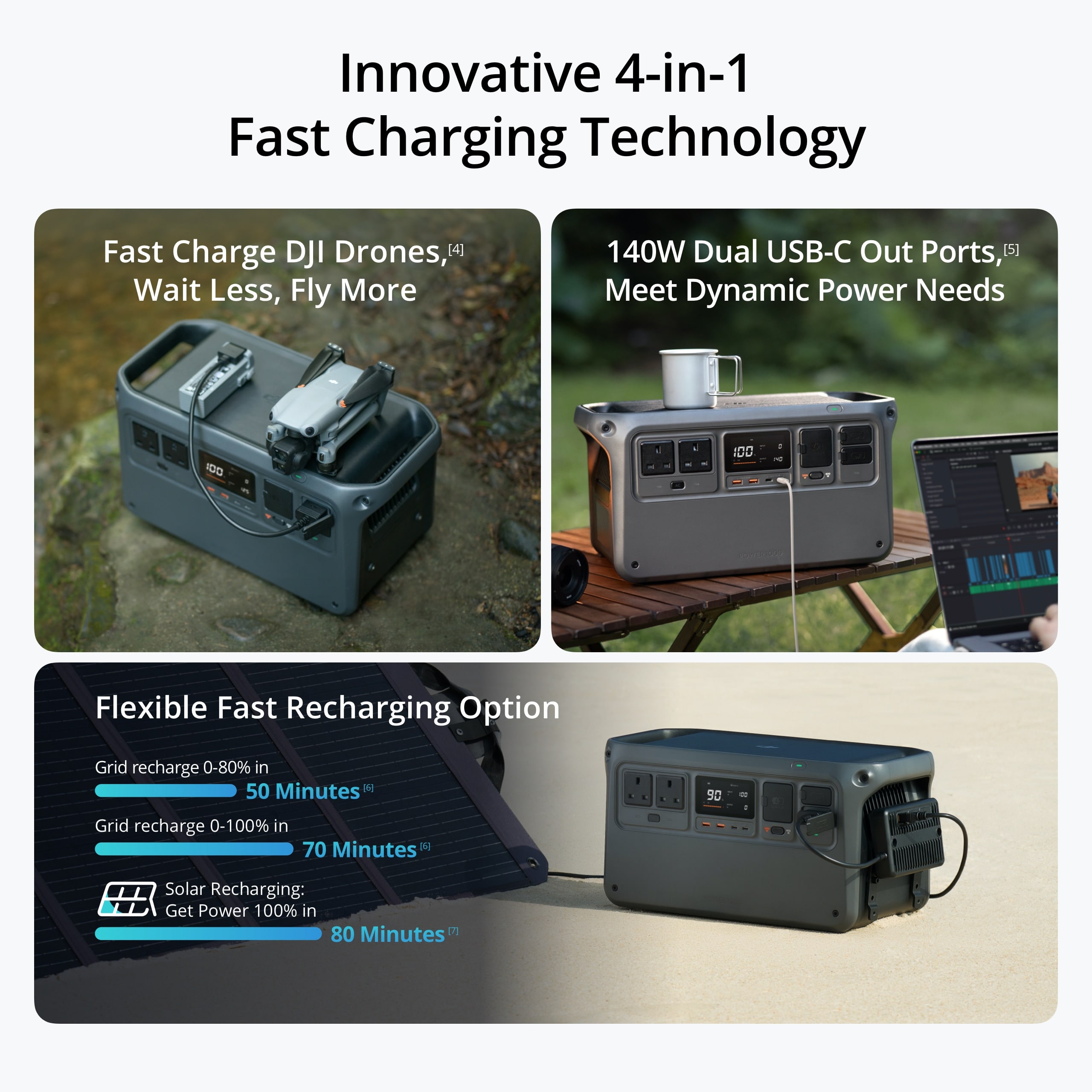

Fast Charging for DJI Drones, With the aid of separately sold charging cables, you can fast charge select DJI drone batteries with the DJI Power SDC super-fast charge function and be up in the air within approximately 30 mins. With three drone batteries and a DJI portable power station, you can enjoy an entire day of worry-free flight and creation.
Versatile Recharging Options, DJI Power 1000 can be recharged in three ways: grid power, solar power, and car power. Whether indoors or on the road, you can flexibly choose the recharging method that works for you.
Power 1000 has 2 USB-A ports, 2 AC output ports, 1 SDC port, 1 SDC Lite port, and 2 1/4 thread holes for expanded charge and recharge options.
- – enough for up to 57 charges.
- Fast charge: faster than standard charging, for when time is of the essence.
- Pass through charge enabled – allows you to safely charge the power bank and a device at the same time.
- 1.1 hours recharge time.
- Cable length – 0.75m.
- USB-A and USB-C cable.
- 4 USB outputs.
- LED indicators: let you know when your device is charging, when it’s fully charged and the level of energy your power bank has left.
Model: DYM1000L/DYM1000H
Capacity: 1024 Wh
Net Weight: Approx. 13 kg
Dimensions: 448×225×230 mm (L×W×H)
Number of Ports
AC Output × 2
USB-C × 2
USB-A × 2
SDC × 1
SDC Lite × 1
AC Input × 1
Max Operating Altitude: 3000 m
Output Specifications
AC Output
DYM1000H: AC 220-240 V, 50/60 Hz, max continuous output: 2200 W,* max output: 2600 W (total),** peak output: 4400 WAC output data varies by country and region.
Given that the voltage in Japan is 100 V, the max continuous output power of the Japanese version is 2000 W.
* At a room temperature of 25° C (77° F), Power 1000 can stably provide a max continuous output of 2200 W until the battery runs out. Data measured in a DJI laboratory.
** At an output power of 2600 W, the DYM1000L prototype can sustain for 30 seconds, and the DYM1000H prototype can sustain for 60 seconds. Durations were measured when DJI Power 1000 is at approx. 25° C (77° F) and 50% battery level. Duration may vary due to differences in battery temperature and battery level. Refer to the actual usage. It is recommended to use max power output when the battery is at a moderate temperature and a relatively higher battery level. Data measured in a DJI laboratory.
AC Output (Bypass Mode)
DYM1000H: AC 220-240 V, 10 A, 2200 W
USB-A Output
9 V, 2 A
12 V, 2 A
Max output power per channel: 24 W
USB–C Output
9 V, 5 A
12 V, 5 A
15 V, 5 A
20 V, 5 A
28 V, 5 A (EPR)
Max output power per channel: 140 W** Each USB-C port supports a max output power of 140 W. The device being charged must support the PD 3.1 protocol and use a USB cable that meets EPR specifications.
SDC and SDC Lite Output
SDC Lite: 9-27 V, max current: 10 A, max output power: 240 WBoth of the SDC and SDC Lite ports support extensive accessories.
Input Specifications
AC Input
DYM1000H: AC 220-240 V, 1200 W* (recharging), 2200 W (Bypass mode)* To achieve the maximum grid recharging power of 1200 W, the battery level of the power station must be at least 60%, and the ambient temperature should be between 20° to 35° C (68° to 95° F).
SDC and SDC Lite Input
SDC Lite: DC 32-58.4 V, max 400 W, 8 ABoth of the SDC and SDC Lite ports support extensive accessories.
Battery
Cell Chemistry
Cycle Life
Maintains over 70% capacity after 4000 cycles.
Measured at 25℃/77°F room temperature, being recharged in the 600W Standard Recharge Mode, and at an output power of 1000 W.
